AZQ Series Mini Integrated Vacuum Generator

Brand Name : NBSANMINSE

Model Number : AZQ-X

Place of Origin : CHINA

MOQ : 10PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Certification : ISO9001

Price : Negotiate

Payment Terms : L/C,T/T

Specifications : X - High vacuum level type

pressure : 3.0~6.0 bar

Max. vacuum level : 91 kPa

Max. vacuum flow : 12NL/min

Air consumption : 8.2 NL/min

Warranty : 1 Year

Contact Now

Features
◇ Multi-nozzle design
◇ Small size and light weight. The volume is 43.5cm³
◇ Centralized air supply
◇ No noise (vacuum pump type)
◇ With digital vacuum pressure switch
Advantages
◇ The device is compact and can be installed directly in the handling system
◇ Simple installation, can be installed directly on the distribution box
◇ Vacuum pump type is suitable for centralized vacuum station system
Applications
◇ Vacuum producing and monitoring in automation systems
◇ For robot handling applications and linear axes
◇ Pick and place applications with very short time
◇ Used for systems that require high dynamic handling of workpieces
and with limited space
◇ Usually used for handling small parts in fully automated systems
AZQ Series Mini Integrated Vacuum Generator
Without vacuum source type
(Vacuum pump type)
◇(1)Vacuum release valve
◇(2)Vacuum release adjusting valve
◇(3)Vacuum supply valve
◇(4)Vacuum pressure switch
◇(5)Air supply port
◇(6)Vacuum pump connector
◇(7)Vacuum port
AZQ Series Mini Integrated Vacuum Generator
With vacuum source type
(Vacuum generator type)
◇(1)Vacuum release valve
◇(2)Vacuum release adjusting valve
◇(3)Vacuum supply valve
◇(4)Vacuum pressure switch
◇(5)Air supply port
◇(6)Exhaust port
◇(7)Vacuum port
AZQ Series Mini Integrated Vacuum Generator
How to order
AZQ - T × 8 - N - DP
① ② ③ ④ ⑤
①Series ②Specifications ③Stack ④Vacuum switch ⑤Air supply
AZQ X-High vacuum level type Nil-Single body N-2NPN output+1 analog output(1~5V) Nil-Individual air supply
T-Large flow type 2 P-2PNP output+1 analog output(1~5V) DP-Centralized airsupply
B-Vacuum pumptype 3



.....



10

◇Note:1. It is recommended to install an air filter with a filtration accuracy of 5um or less for positive pressure air supply of the vacuum generator
(without the need for an oil mist filter)
2. For vacuum pump type, the recommended stack quantity is 6PCs. The maximum vacuum flow rate will be a decrease if there is stack Bx7
and Bx8. Please refer to the following parameters:
31NL/min is the max.allowed passing flow of single stack of AZQ-Bx7
28NL/min is the max.allowed passing flow of single stack of AZQ-Bx8
Technical parameters
Model Air supply
pressue range
bar		 Rated
air supply pressure
bar		 Max.
vacuum level
-kPa		 Max.
vacuum flow
NL/min		 Air
consumption
NL/min		 Noise
dB(A)		 Weight
 g		 Recom
Air supply
portP		 mended
Vacuum
portV		 hose dia. (mm)
Vacuum pump
 connector
AZQ-X 3.0~6.0 5.0 91 12 8.2 64~70 75.4 φ6 φ6 -
AZQ-T 3.0~6.0 4.5 84 16 15.5 64~70 75.4 φ6 φ6 -
AZQ-B 3.0~6.0 - - 35(Note) - - 78.2 φ4 φ6 φ6
◇ Note: 35NL/min is the max.allowed passing flow of single stack of AZQ-Bx6
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
AZQ-X 5.0 8.2 12 9.5
 6.4
 5.6
 5.1
 4.4
 3.2
 2.1
 0.9
 - 90
AZQ-T 4.5 15.5 16 14.5 10.7 9.1
 8.0 6.7
 4.8 2.8 - - 84
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 10 20 30 40 50 60 70 80 90 Max.
vacuum level
-kPa
AZQ-X 5.0 8.2 0.49 1.37 2.90 4.70 6.98 10.03 14.90 23.20 59.52 90
AZQ-T 4.5 15.5 0.34 0.76 1.51 2.40 3.76 5.61 8.94 16.86 - 84
AZQ Series Mini Integrated Vacuum Generator
Technical parameters - Pressure switch
Model

ZPDC-□
Pressure range -100~100kPa
Setting pressure range -105~105kPa
Proof pressure 500kPa
Generalgas Air,Non-corrosive,non flammable gas
Power supply voltage 12-24V DC±10%,RIPPLE(P-P)10%or less
Current consumption s40mA(Without load)
Switchoutput Outputmode 2NPN or 2PNP open colector output+1~5V Linear analog output
Max.Loadaurrent 125mA
Max.supplyvoltage 30V DC(NPN)24V DC(PNP)
Residual voltage ≤1.5V
Response time ≤2.5ms(chattering-proof functione 25ms,100ms,
250ms,500ms,1000ms,1500ms selectable)

Output short drcuit protection Yes
Repeatability ±0.2%F.5. ±1 digit
Display
3½LED7segment display(Red)display(Sampling rate:5times/sec)
Indicator accuracy ±2%F.5. ±1 digit At ambient temperature:25±3℃
Switch ON indicator OUT1:Green/OUT2:Red
Environmental
 resistance		 IP Grade IP40
Ambient temp.range Operation:0~50℃
Withstand voltage 1000VACin 1minute (between case and lead wire)
Insulation resistance 50M0 min. (at 500V DC,between case and lead wire)
Temperature characteristic ±2%F.5. (at temperature range of 0~50℃)
Lead wire Oil proof PVC cable(0.15mm²)
Output circuit wiring diagrams
AZQ Series Mini Integrated Vacuum Generator
Centralized air supply dimensions(mm)
AZQ Series Mini Integrated Vacuum Generator

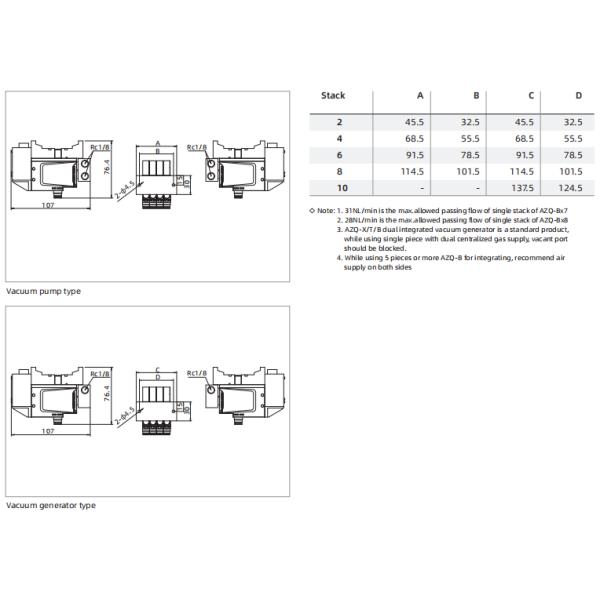

Dimensions(mm)
AZQ Series Mini Integrated Vacuum Generator
